Part 7 - Electrical & Magnetic fields

In this part we’ll finally cover magnetic fields and some very important laws for these. We’ll see how electrical and magnetic fields interact with each other as well.

Materials in electrical fields

We have lightly touched on this before but - different types of materials will behave differently in electrical fields.

We can roughly say we have three categories of types - conductors, semiconductors and insulators.

Definition 1 (Conductors, insulators and semiconductors)

A conductor is, as the name suggests, where the electrons are weakly bound to the atoms. An insulator is the opposite, the electrons are strongly bound to the atoms.

The interesting area of semiconductors is where the electrons’ bonds are temperature dependent!

Conductors in electrical fields

Say if we have an iron sphere, the electrical field inside the sphere will be exactly 0. Why is that? Since the electrons are free to move, they will arrange in a way that maximizes the distance between each one.

This means all the charge will be at the surface of the sphere, therefore the electrical field inside the sphere is 0.

However, if we put this iron sphere inside an external electrical field, we will create a dipole field!

But just as we discussed, the electrical field inside will still be 0!

We say that:

Note

Any net charge must reside on the surface.

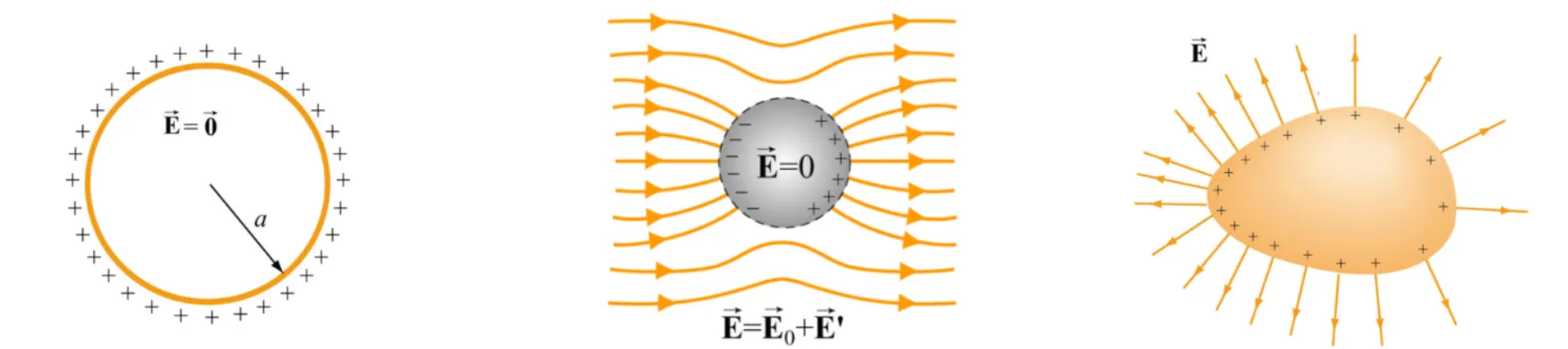

Figure 1: Conductors in electrical fields.

Insulators in electrical fields

One important thing about insulators is that - there are two different types - Polar dielectric and Nonpolar dielectric materials.

Polar dielectric materials will align the dipole moment, while nonpolar dielectric materials will gain an induced dipole moment.

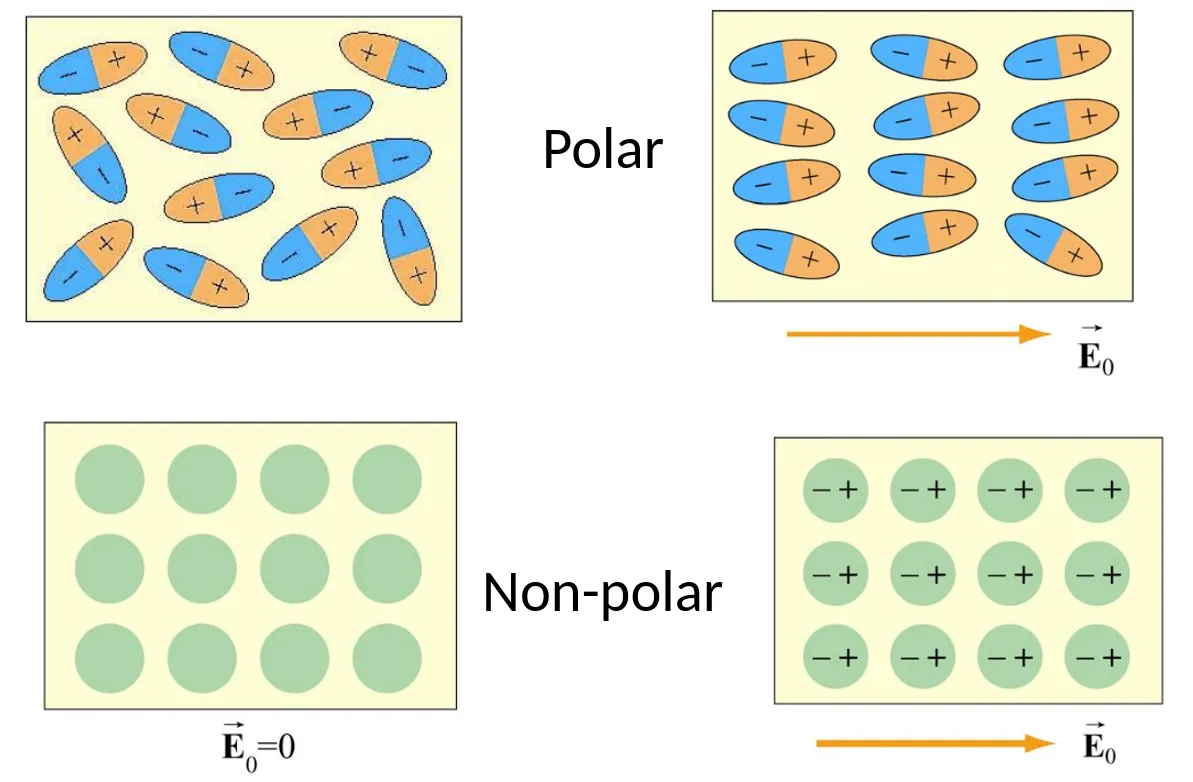

Figure 2: Polar and non-polar dielectrics without and with an external field.

Dielectric constant

Since our molecules now align with the electrical field, this will result in an electrical field in the opposite direction!

Since, generally, capacitors don’t have vacuum between the plates.

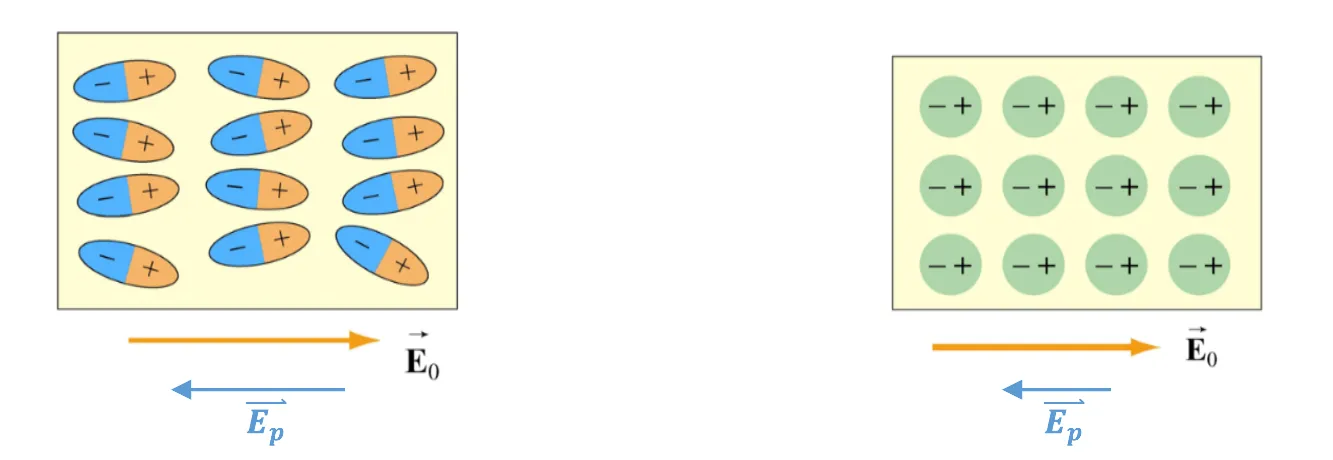

Figure 3: The polarization field opposes the external field.

We can write the total net electrical field as,

\mathbf{\vec{E}} = \mathbf{\vec{E}}_0 + \mathbf{\vec{E}}_p.

Note that this is vector addition - with direction of course!

The point here was, how does this affect the capacitance? Recall that,

\begin{align*} \Delta V & = - \int_+^- \mathbf{\vec{E}} \cdot d\mathbf{\vec{r}} = -Ed, \newline C & = \dfrac{q}{|\Delta V|} = \dfrac{q}{|Ed|}. \end{align*}

This means that,

C \propto \dfrac{1}{|E|}.

This means we can essentially control our capacitance or electrical field!

The capacitance increases as the electrical field is reduced!

Definition 2 (Dielectric constant)

We model this increase with a constant, the dielectric constant!

C = k_e C_0

Conductivity & Resistivity

One very important detail we have yet to cover in electrical circuits is - what causes the current to move?

Imagine if we put a conductor inside an external electrical field - the charge will move due to the electrical field and create a current.

With an active current, the conductor is no longer an equipotential surface.

We can write the total current as,

I = \iint \mathbf{\vec{J}} \cdot d\mathbf{\vec{A}},

where $\mathbf{\vec{J}}$ is the current density.

Let’s also discuss this, electron movement is not linear, but on average, it is moving in a set direction.

This means that the rate of electron movement depends on the conductivity, $\sigma$ , of the material,

\mathbf{\vec{J}} = \sigma \mathbf{\vec{E}}.

If we assume $\mathbf{\vec{E}}$ is uniform meaning the electrical field lines are evenly spaced apart.

We have,

\begin{align*} J & = \sigma E = \sigma \dfrac{\Delta V}{l} \newline & = \dfrac{I}{A}. \end{align*}

This means,

\begin{align*} \Delta V & = \dfrac{l}{\sigma} J \newline & = \dfrac{l}{\sigma A} I \newline & = RI, \end{align*}

where $R$ is,

R = \dfrac{\Delta V}{I} = \dfrac{l}{\sigma A}.

Therefore, resistivity is the inverse of conductivity,

\rho = \dfrac{1}{\sigma}.

Magnetic fields

Now, finally, magnetic fields.

They behave similarly to electrical fields! However, magnetic fields always exist as dipoles!

Magnetic fields arise due to the motion of charge.

So how do we define the magnetic field, $\mathbf{\vec{B}}$ ?

We can’t use electrical field equations to define magnetic fields, due to the absence of magnetic monopoles.

So let’s instead consider a particle of charge, $q$ , moving at velocity, $\mathbf{\vec{v}}$ .

\mathbf{\vec{F}}_B = q\mathbf{\vec{v}} \times \mathbf{\vec{B}}, \quad F_B = |q|vB \sin(\theta).

The unit for magnetic field strength is Tesla,

1 \ \mathrm{T} = 1 \ \mathrm{\dfrac{N}{A \cdot m}}.

Biot-Savart’s law

Theorem 1 (Biot-Savart’s law)

Given current through a wire, the magnetic field from a single point on the wire is,

d\mathbf{\vec{B}} = \dfrac{\mu_0}{4\pi} \dfrac{I \, d\mathbf{\vec{s}} \times \hat{\mathbf{r}}}{r^2},

where $\mu_0$ is the permeability of free space,

\mu_0 = 4\pi \cdot 10^{-7} \ \mathrm{\dfrac{T \cdot m}{A}}.

We can also calculate the total magnetic field at a point, $P$ , as the sum across all points along the current source,

\mathbf{\vec{B}} = \int d\mathbf{\vec{B}} = \dfrac{\mu_0 I}{4\pi} \int \dfrac{d\mathbf{\vec{s}} \times \hat{\mathbf{r}}}{r^2}.

Ampere’s law

If we want to calculate the magnetic field strength along a circular path,

\oint \mathbf{\vec{B}} \cdot d\mathbf{\vec{s}} = B \oint ds = \dfrac{\mu_0 I}{2\pi r}(2\pi r) = \mu_0 I.

Therefore, the total field strength, around any closed Amperian loop is proportional to $I_{enc}$ , the current encircled by the loop,

Theorem 2 (Ampere’s law)

\oint \mathbf{\vec{B}} \cdot d\mathbf{\vec{s}} = \mu_0 I_{enc}

Note that this equation requires symmetry (in this case infinite symmetry!).
